TWIN CAM FXR CONVERSION KIT

TWIN CAM FXR CONVERSION KIT

$359.99 USD
$359.99 USD
Sale Sold out
TWIN CAM FXR CONVERSION KIT


This kit will include an array of brackets, tabs, panels, and mounts allowing you to install a Twin Cam touring power train into an FXR chassis. The new main cross member is designed to accept all DYNA kickstand components. No longer will you have to deal with crappy bent or rounded lock tab/ear on your FXR kickstand, no more paying for overpriced FXR kickstand parts, and most importantly, having readily available replacement components at almost all H-D dealerships and aftermarket shops. We machine a very solid kickstand stop which gets welded to the bottom of the cross member which guarantees a ton of engagement from the kickstand to ensure it doesn't "pop-out" or bend and cause the kickstand to give or the bike to fall over

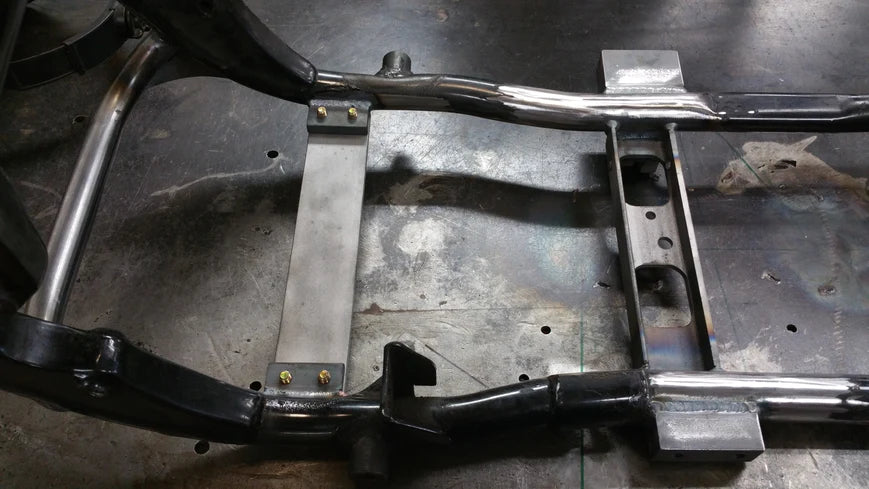

The new main cross member is designed to accept all DYNA kickstand components and provide clearance for the oil pan. The rear cross member will be replaced to allow clearance for the touring oil pan and transmission as well. We include two alternatives (both pictured). One is the most common the "Wrap Around" style which will allow you to service your oil pan without removing any other parts on the motorcycle like the rear wheel but still sitting low enough to protect the oil bag from speed bumps, curbs, etc.. The tubing is a .120" wall DOM used with two gussets. Option two being the removable plate basically goes in place of the stock on but stronger and removable again to allow service the transmission oil pan, and to retain the OEM look not seeing the rear bar. Both are included you can use either or both, your choice.

For foot controls removing the factory left side boxed in control, the mount is NOT required but the right on is as it will come out when removing the center cross member and kickstand mount. In its place, this kit includes a right side foot control mount which is radius cut on the backside for a nice centered fit on your frame rail and threaded to accept a right side Dyna mid control mount. We also include an additional one in case you would prefer to run a Dyna mount on the left side also.

We also include a plate to fill the void where the oil bag used to live, a cap for the front engine mount. The oil bag filler plate is solid and can be used to mount many things on the inside such as a coil or wiring accessories.

100% MADE IN THE USA

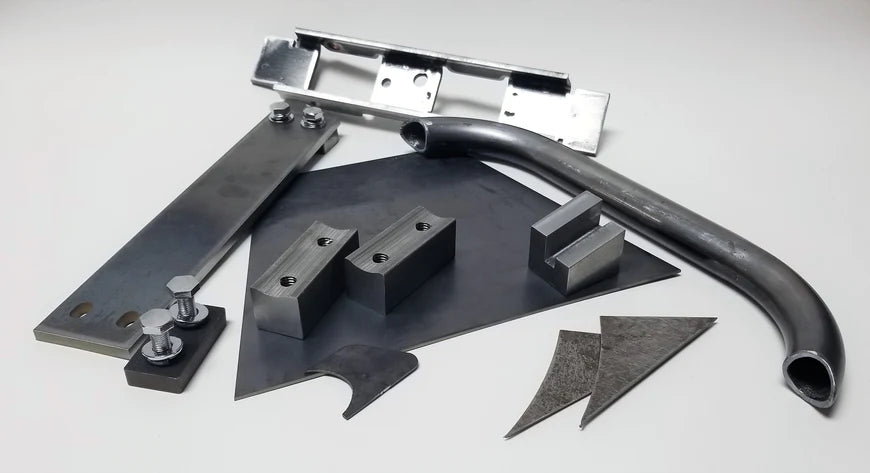

Standard kit includes:

  • Main Center Crossmember
  • Extra Strong Kickstand Stop
  • Wrap Around Crossmember Tubing w/ (2) Tubing Gussets
  • Rear Removable Crossmember Kit w/ Tabs and Chrome Hardware
  • (2) Dyna Foot Control Mounts
  • Oil Bag Filler Plate
  • Front Engine Mount Cover Plate
  • Master Cylinder Tab
